Technical data |
|
| DIMENSIONS | |
| Dimention with carriage + morticer | 620 mm (height) x 850 mm (length) x 800 mm (width) |
| Net weight | 46,5 kg |
| CIRCULAR SAW | |
| Diameter | 200 mm |
| Maximum height cut | 65 mm |
| Speed saw | 4200 rpm |
| Dimension of the cut plane | 620 x 300 mm |
| SQUARING CARRIAGE | |
| Length of slinding carriage | 500 mm |
| Dimention carriage | 120 x 740 mm |
| SPINDLE MOULDER | |
| Shaft diameter | 20 mm |
| Maximum shaft height | 45 mm |
| Speed rotation | 9000 rpm |
| SURFACING PLANNER | |
| Max. planing width | 154 mm |
| Advance Rate | 7 meters / min |
| Max cutting depth with single-pass | 2,5 mm |

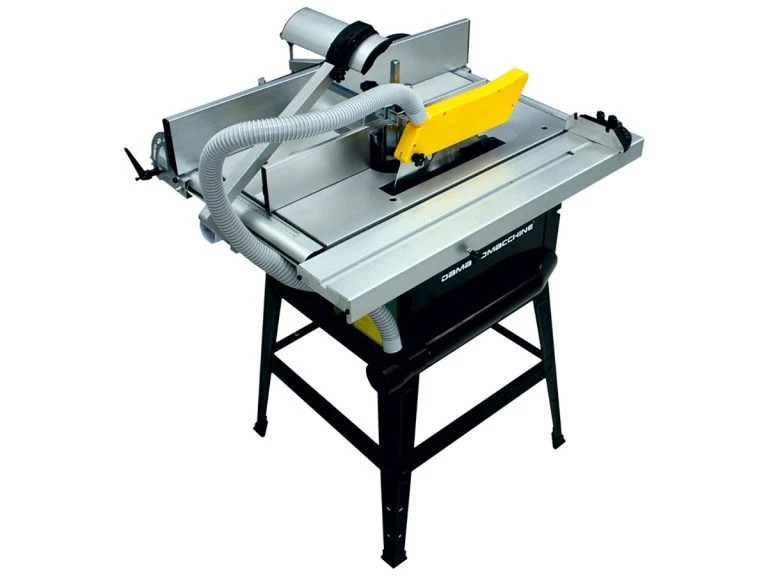

It’s a small woodworking machine 6 function with circular saw Ø 200 mm, squaring carriage with a maximum stroke of 500 mm, milling / Moulding with cutter head 50 mm, Planer / thickness from 154 mm wide with 2 knives, Mortiser , alimenatata from a single-phase motor of 1,000 W.
This version ( Elite ) is different from the Standard version because is equipped with shapers able to mount a head port knives of diameter by 50 mm.
